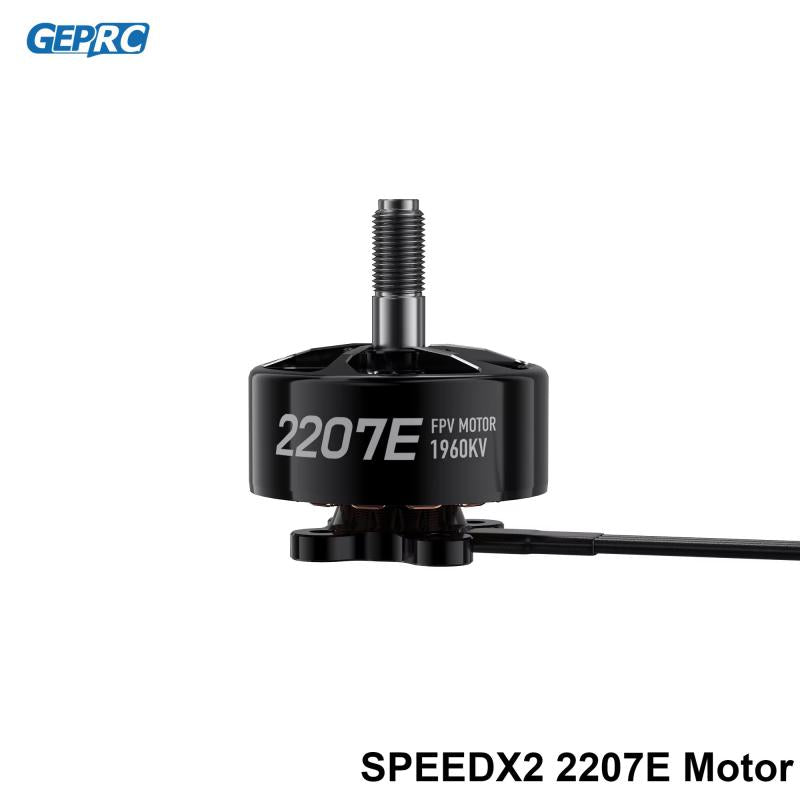

GEPRC SPEEDX2 2207E Motor

Summary

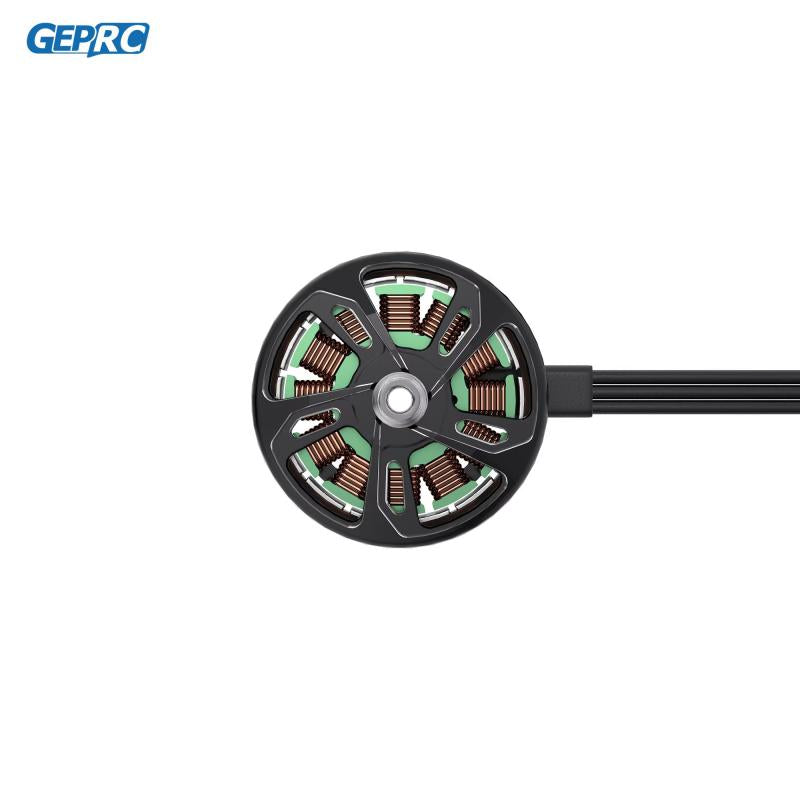

The SPEEDX2 2207E series features a sleek, all-black glossy design with extensive cutouts for optimal heat dissipation, ensuring durability and impact resistance. Its high responsiveness provides effortless control in every maneuver.

Feature

1.  Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.

2.  The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.

3.  Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

Specifications

• Model: SPEEDX2 2207E Motor

•  KV: 1960

•  Max Watt: 1104.7W

• Peak Current: 44.57A

• Interphase Resistance: 69.85mΩ

• Propeller: 4-5inch-3blade

• Magnet: N52H

• Bearing: NMB/NSK

• Stator Configuration: 12N14P

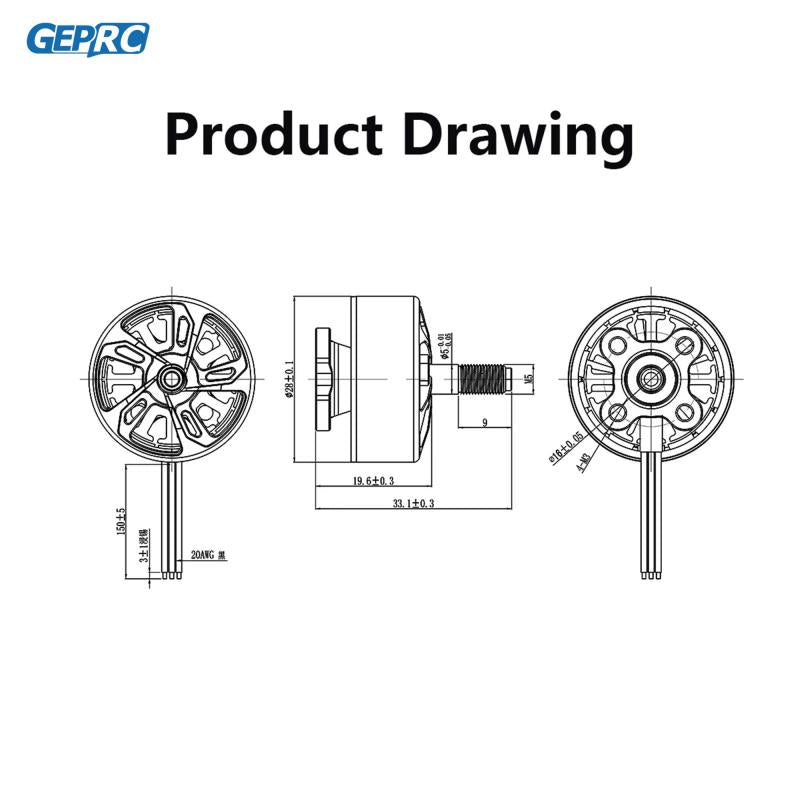

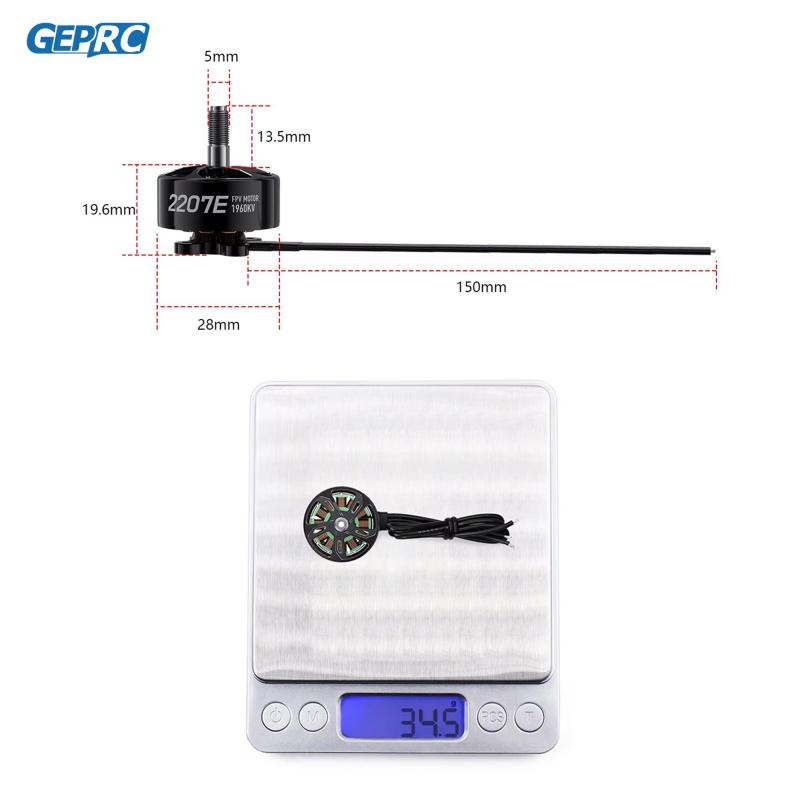

• Dimension: 28*19.6mm

• Shaft Diameter: 5mm

• Shaft Length: 13.5mm

• Mounting Hole Size: 16*16mm

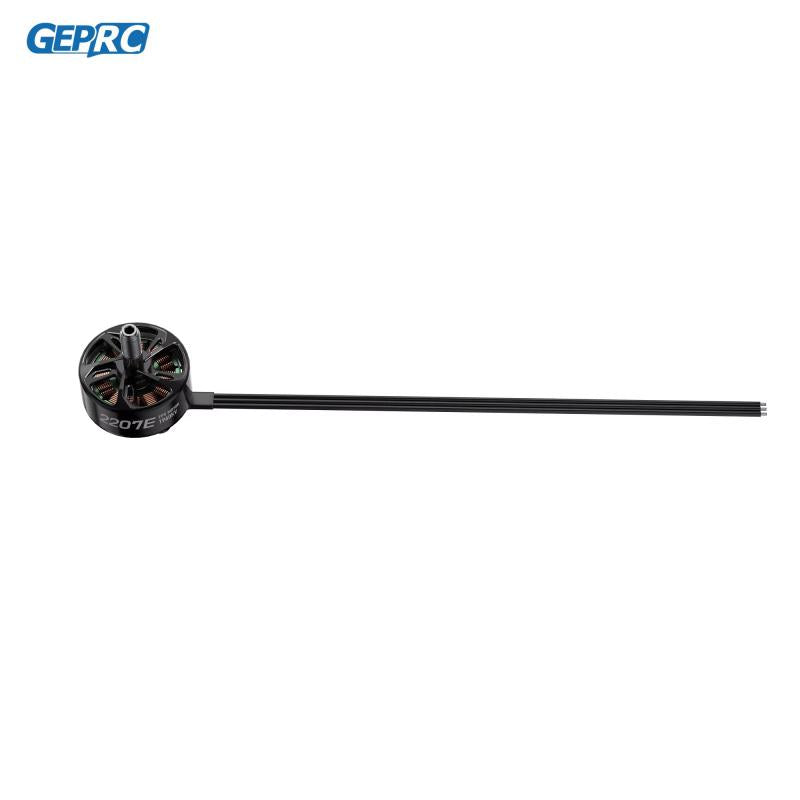

• Wire Specification: 20AWG/150mm

• Compatible ESC: 50A/6S

• Input Voltage: 6S

• Winding: Single-strand copper winding

• Color: Black

• Weight: 34.5g (including wire)

• Compatible Models: Suitable for 4inch-5inch racing FPV quads
