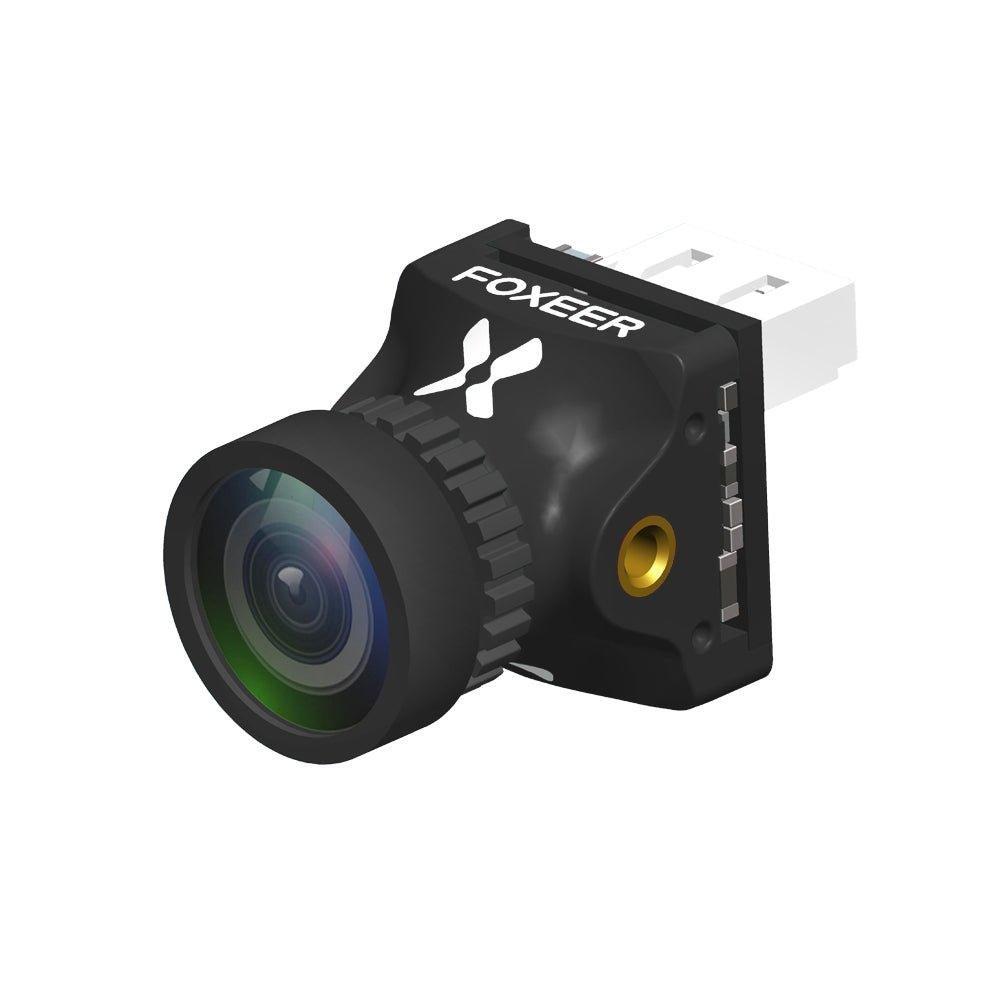

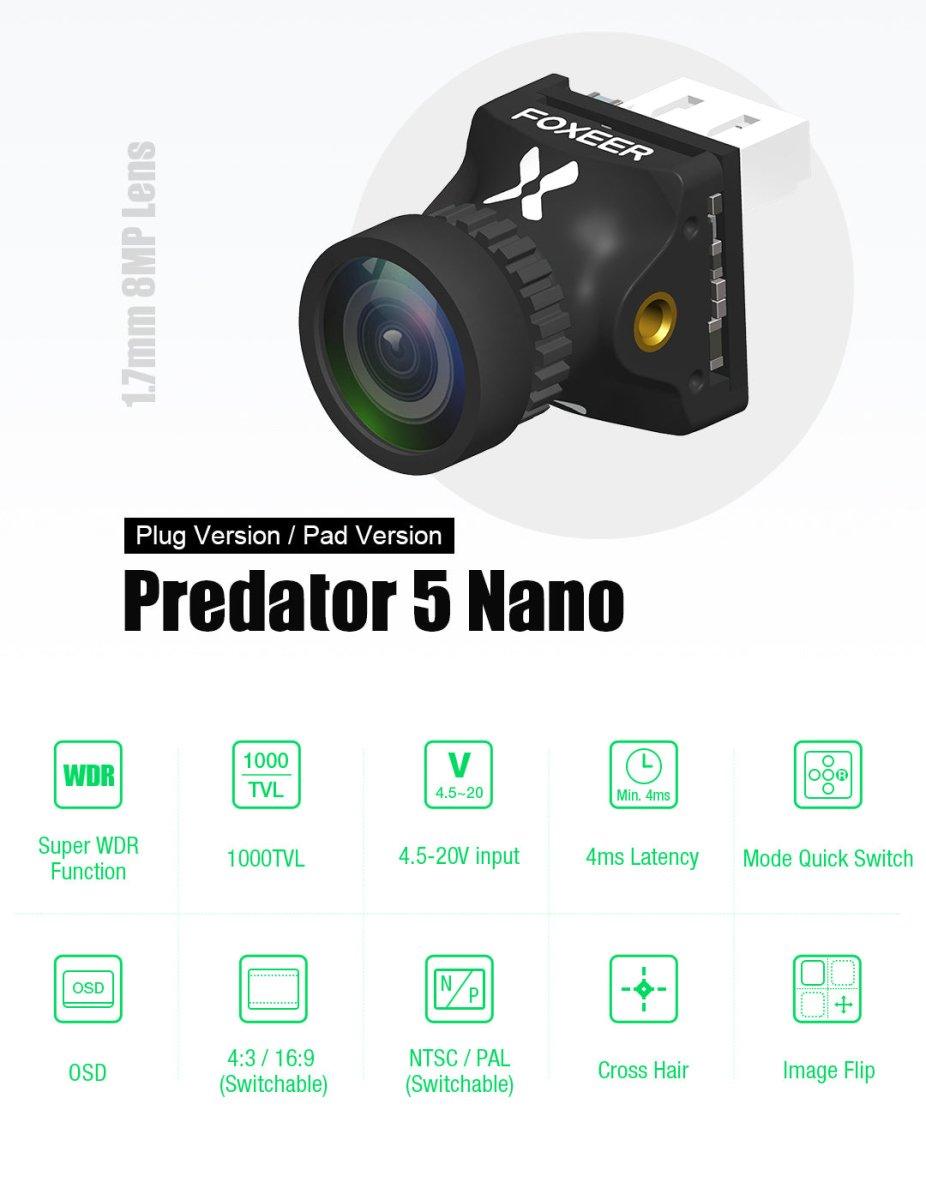

Foxeer Predator 5 Nano Racing Camera 4ms Latency w/ 1000TVL 1.7mm Lens - Choose Version / Color

The Foxeer Predator 5 Nano Racing Camera is a low latency camera offering racers a competitive advantage.  With 1000TVL it is crystal clear video without the need for expensive HD systems.

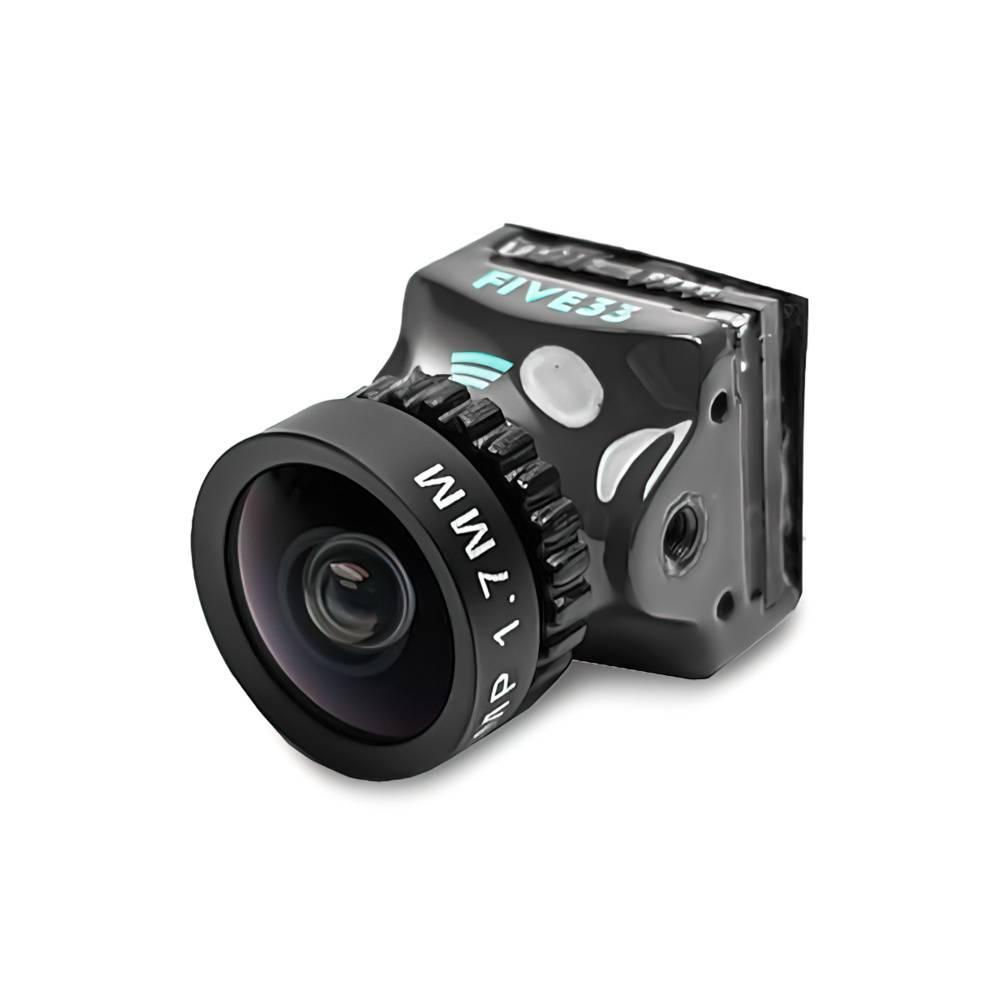

This is available in 3 editions, Red, Black and Five33 Grey & Teal.

The Red / Black are available in a Solderable version with just pads as well as the more common Connector version.  The Five33 version is only available with a connector.

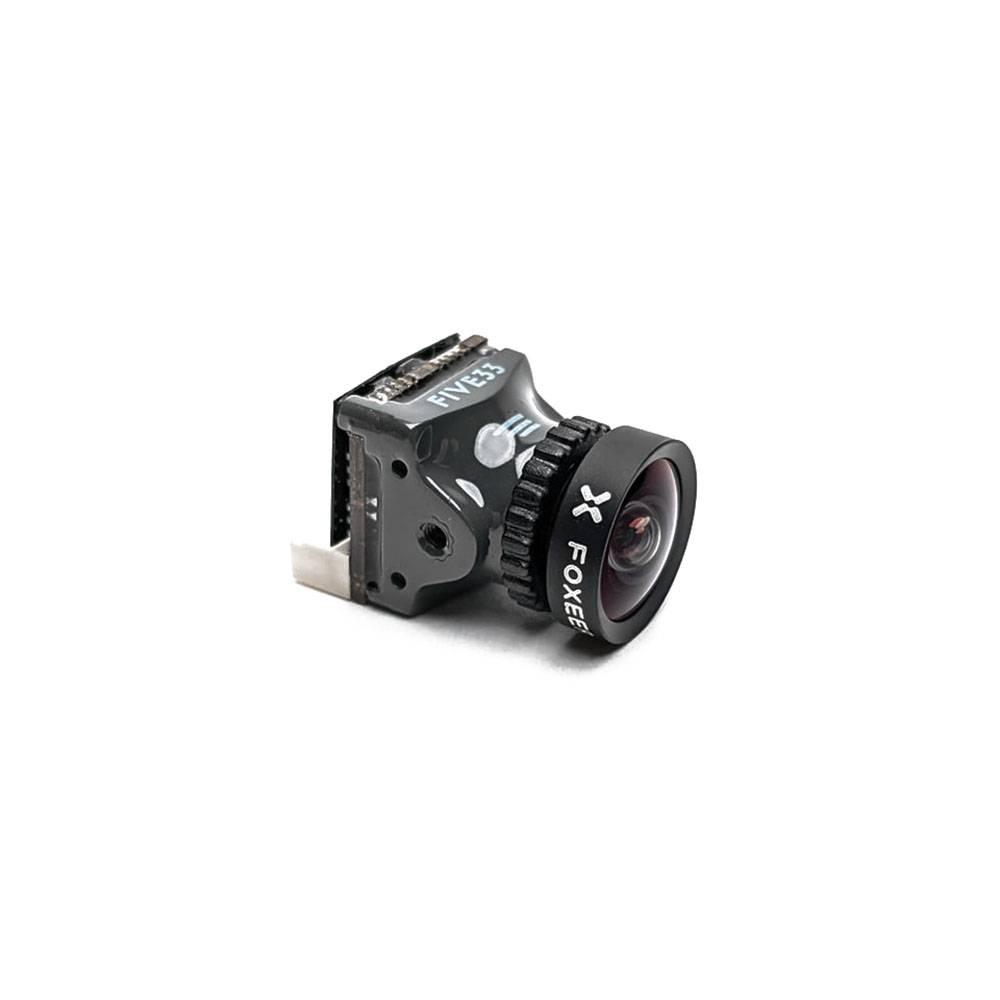

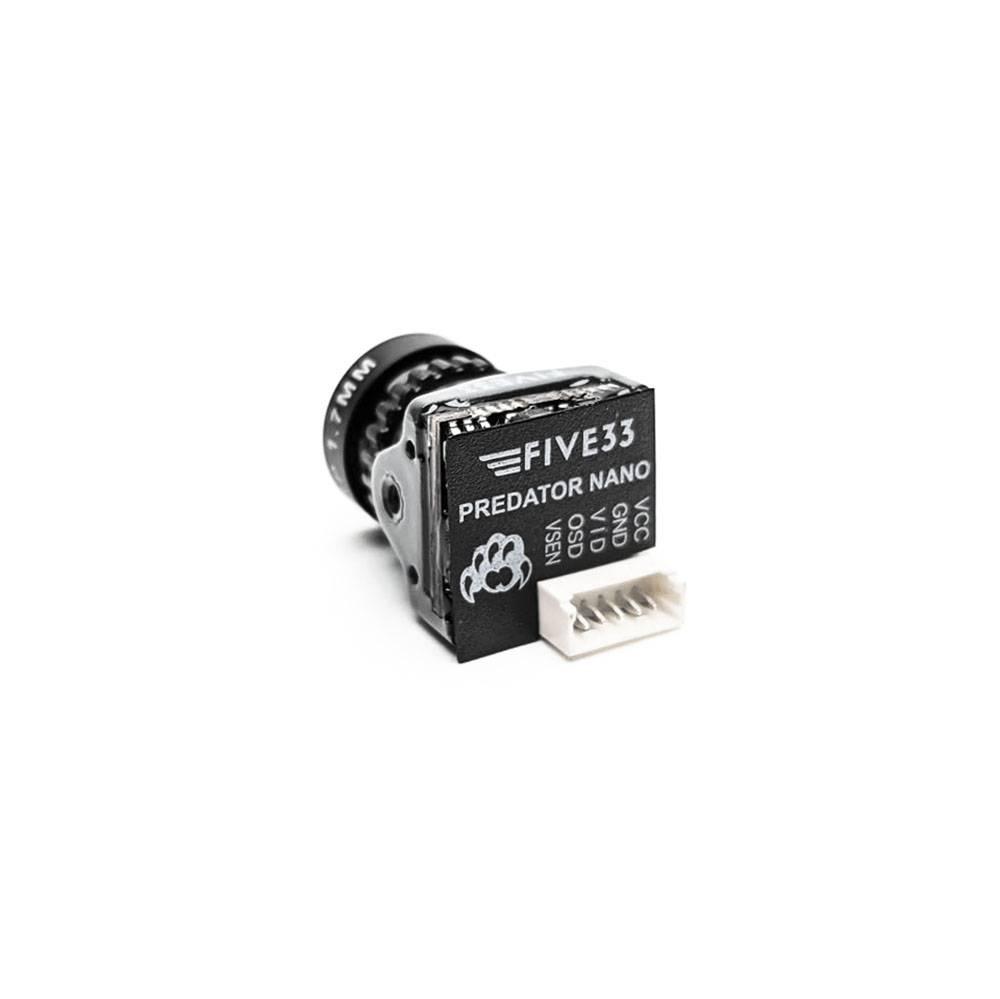

The Five33 edition is Pre HV-Flipped, meaning that the software on the Predator 5 has been set to flip the image horizontally and vertically by default to fit in Five33 frames easier.  But it can be changed in the camera settings with the included control board.

SPECIFICATIONS

• Sensor Type: Sony 1/3" CMOS Sensor
• Scale: 4:3(default)/16:9 Switchable
• Tv System: PAL(default)/NTSC Switchable
• Resolution: 1000TVL
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output CVBS Analog Signal
• FOV: FOV-H: 120° FOV-D: 155°
• Shutter Speed: Auto
• Minimum Illumination: 0.01Lux
• White Balance: Auto
• DNR: 3DNR 2DNR
• WDR: Super WDR
• Mode: DAY/CLOUDY/Night/LED
• Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
• Input Voltage: 5v
• Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Consumption: 50mA±15% @ DC12V 115mA±15% @ DC5V

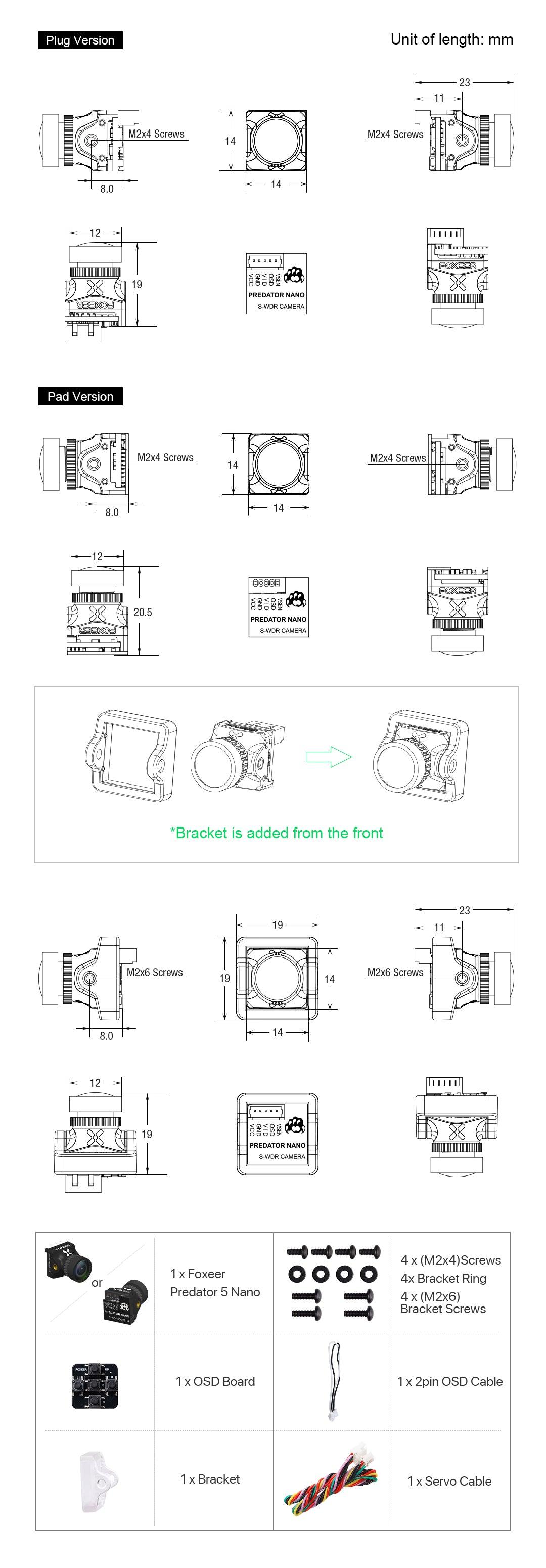

• Dimension: 14*14mm; 19*19mm (Add Bracket)
• Weight: Plug:4.8g Solder Pad:4.3g(Exclude cable)

What's included:

• 1 x Foxeer Predator 5 Nano

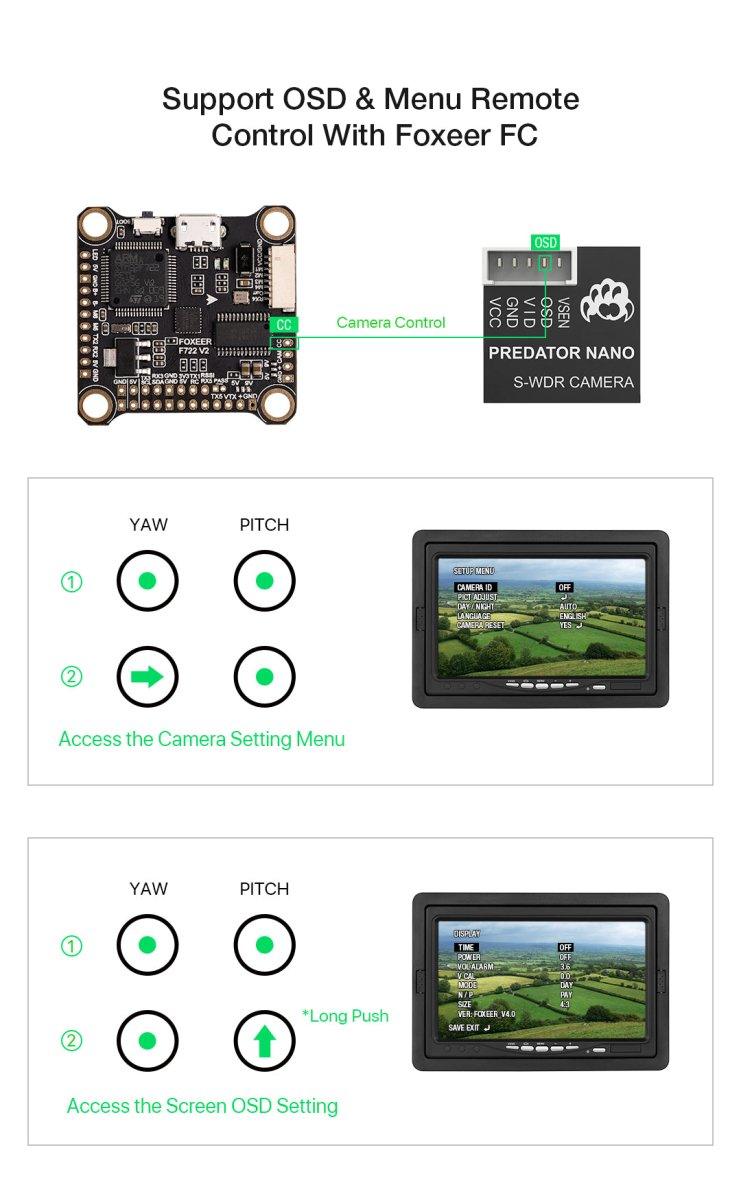

• 1 x OSD Board - This allows you to change settings on the camera.
• 4 x Bracket Screws (M2 x 6)
• 4 x Bracket Ring
• 1 x 2 pin OSD Cable
• 1 x Servo Cable
