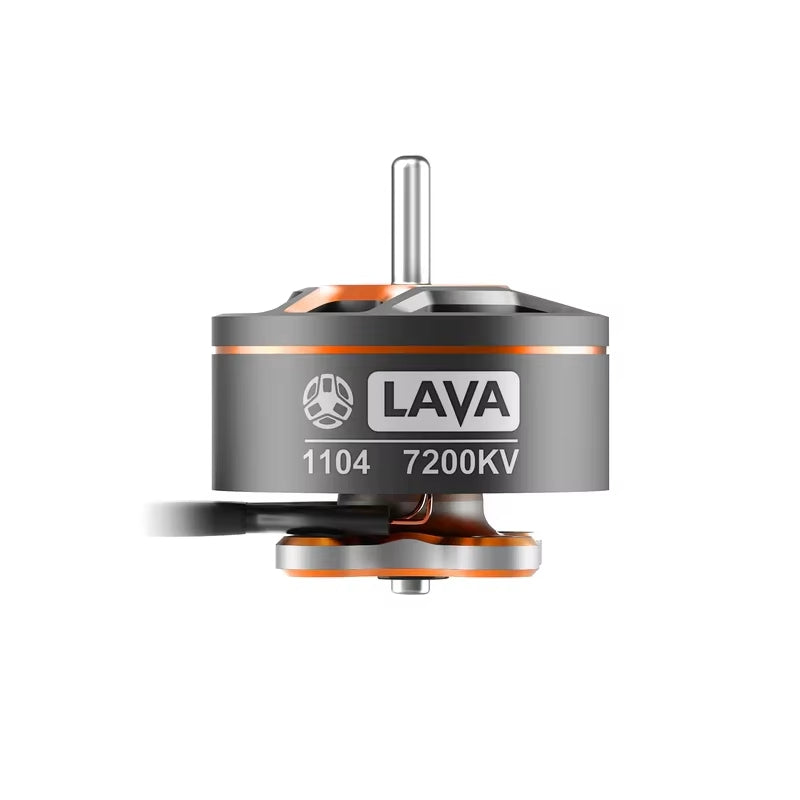

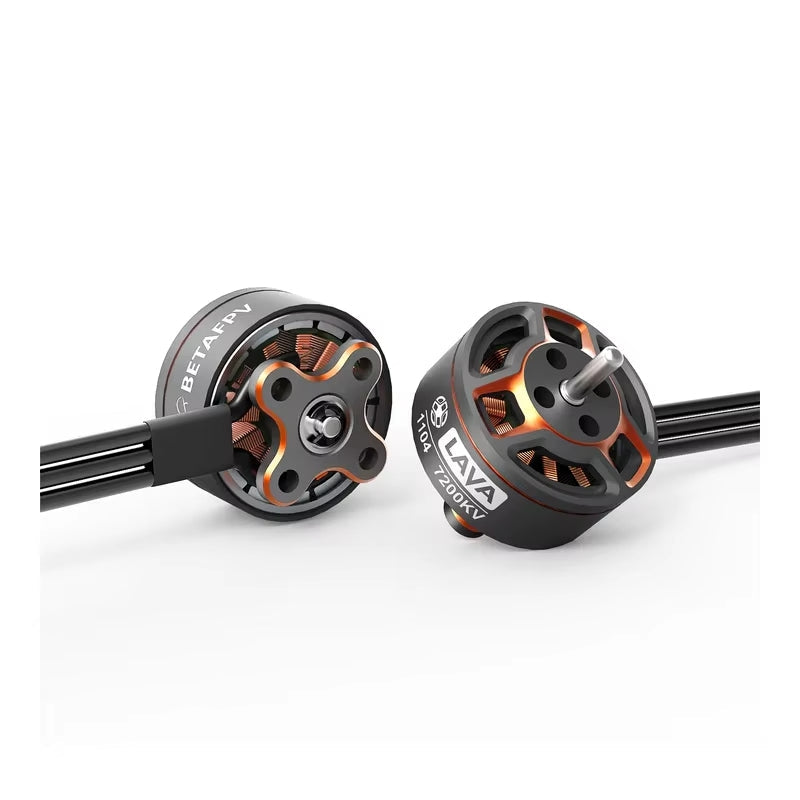

BETAFPV LAVA Series 1104 7200KV Brushless Motors
BETAFPV LAVA Series 1104 7200KV Brushless Motors
Couldn't load pickup availability
BETAFPV LAVA Series 1104 7200KV Brushless Motors
Description
Hello and welcome to FunFPV Store, your new favourite store for all things FPV related!
We offer the latest and greatest products in FPV technology, backed by our first-class customer service. You are important to us, and we will always do our best to serve you.
We are an international company based in China with a dedicated customer service team, perfectly fluent in English. So please buy from us with confidence, we are here to help you.
Please follow our store now, so that you don’t miss out on our many new and exciting products!
Note: We are currently listing many more products. So if there’s anything you want and can’t see here, please send us a message and we likely have what you need. We can give discounts on larger orders/bulk purchases, just ask and we will give you the best deal possible!
LAVA Series 1104 | 7200KV Brushless Motors is designed for the 3S 2.2'' quads, with smoother torque output performance. Combined with the lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft) and the F4 2-3S 20A AIO FC V1, it could enable pilots to swift, agile, and smooth freestyle. Ensuring enough creative space for cinewhoop to explore and capture the most imaginative aerial feats, easily meet professionally shot film creation needs, leading the 3S 2.2'' quads for cinewhoop to new heights.
Bullet Point
Unleash the power of freestyle with the LAVA Series 1104 | 7200KV motors, precision-engineered for 3S 2.2'' quads. Experience a quantum leap in performance, taking the Pavo20 Pro Brushless Whoop Quadcopter freestyle experience to new heights.
With the lower pitch Gemfan 2218 3-Blade Propellers, the max thrust can reach more than 230g, achieving a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle experience.
Paired with the above GF props, the force efficiency is as high as 4.7g/w when flying at low throttle, and even at full throttle load conditions, it can reach 1.9g/w, providing an efficient propulsion system for the quad.
Specification
Items: LAVA Series 1104 | 7200KV Brushless Motors
Maximum Power: 122.5W
Maximum Current: 10.2A

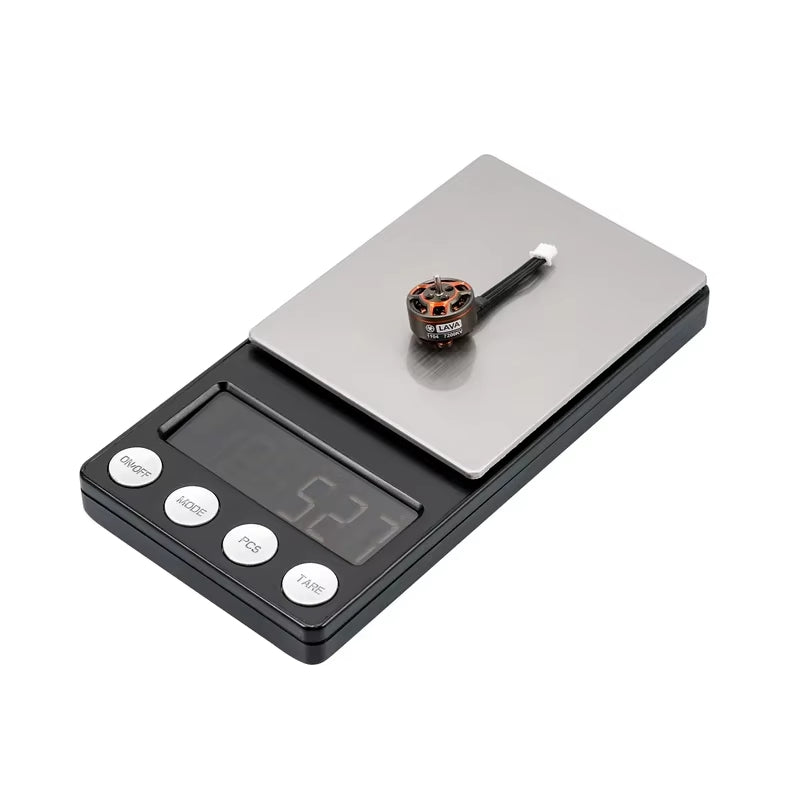

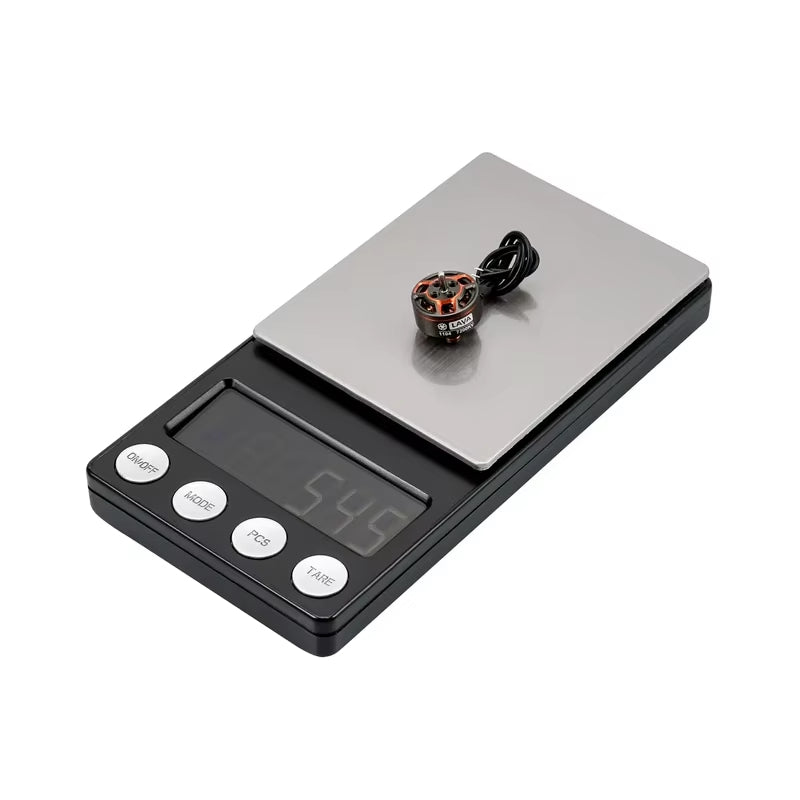

Weight: 5.3g
Shaft Diameter: ø1.5mm
Shaft Length: 5mm
Wire Specification: 28AWG
Wire Length: 24/80mm
Motor Mounting Hole Size: 4*M2 Ø9mm
Propeller Mounting Hole Size: 4*M2 Ø5mm
Note: Only the 24mm length Version has a connector, suitable for the Pavo20 Pro.
The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(24mm).
The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(80mm).
The picture below shows the load performance of the LAVA Series 1104 | 7200KV Brushless Motors.
